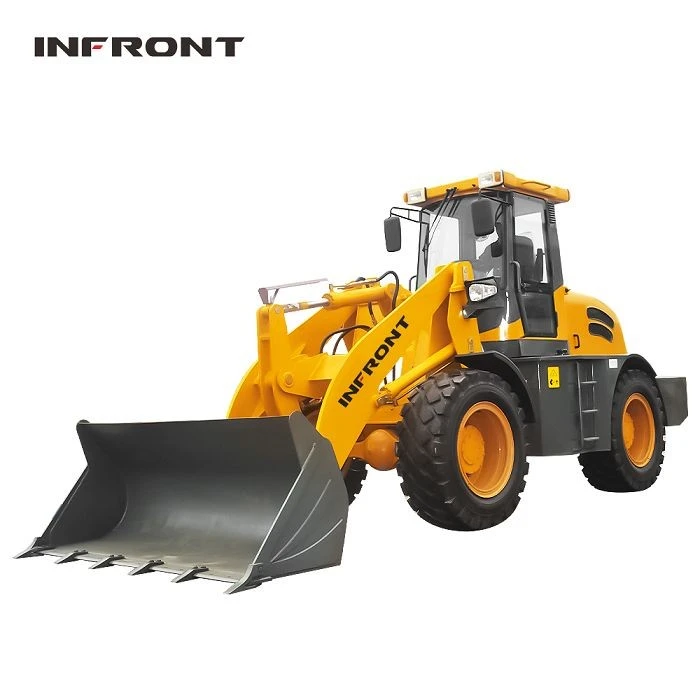

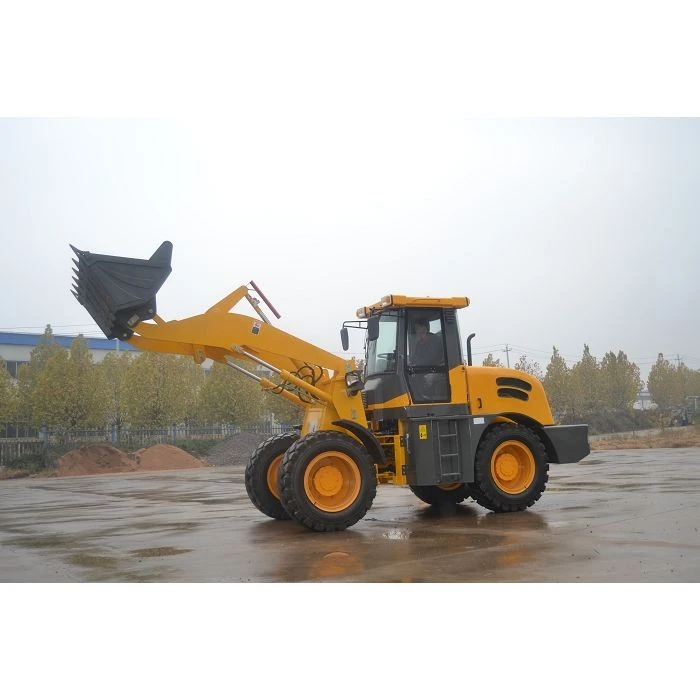

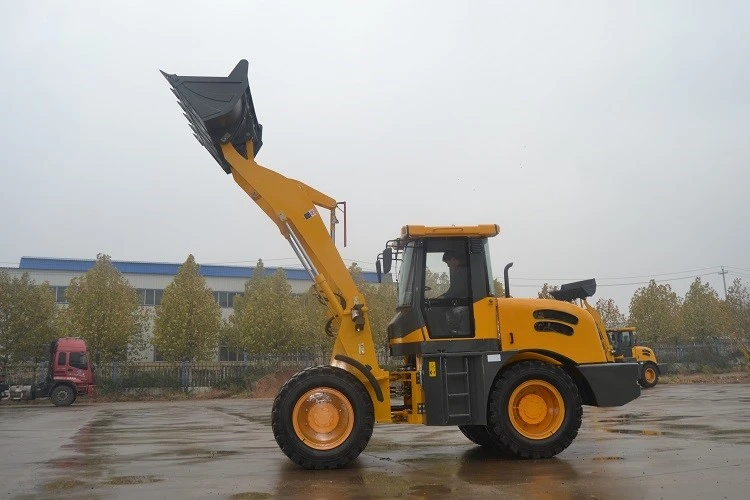

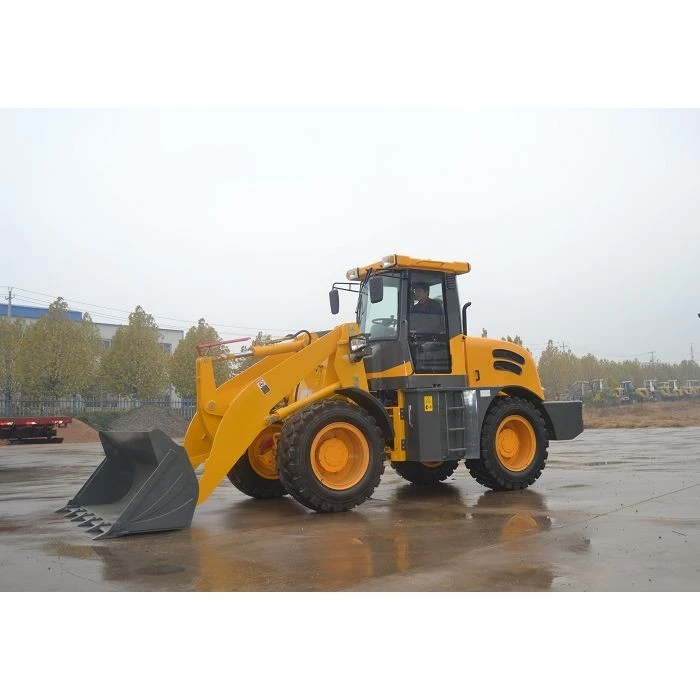

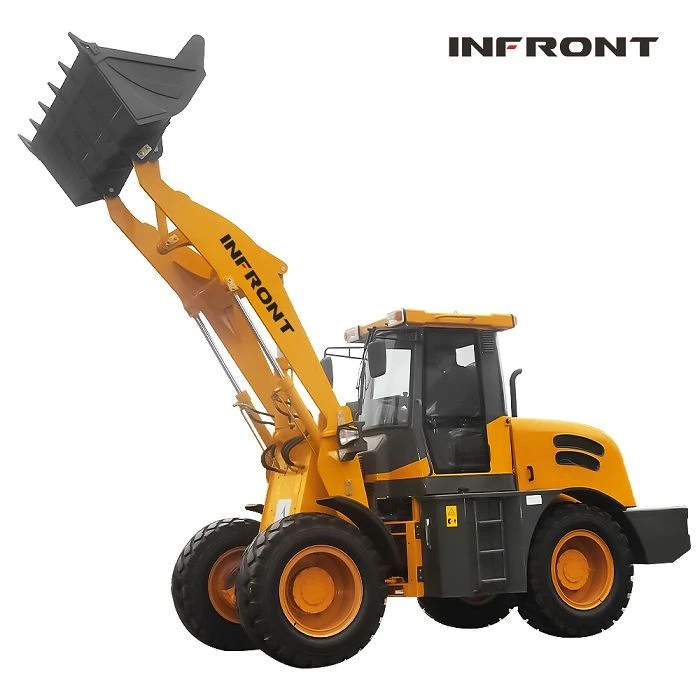

Heavy load design, the front and rear frame adopt girder structure, robot welding, high antitorque coefficient and strong overloading ability.
The key structural parts adopt the finite-element analysis to ensure that the machine could adapt to various kinds of dangerous working condition.
Large distance between up and down articulated plate expands the maintenance space and resolves the load horizontally and vertically.
With the overlong machine body and reasonable load distribution, the machine adapts to heavy load.
|
Performance |
Rated loading |
2800kg |
|
Overall weight |
6000kg |
|
|
Rated bucket capacity |
1.4m³ |
|
|
Maximum tractive force |
≥54KN |
|
|
Maximum breakout force |
≥45.4KN |
|
|
Maximum grade ability |
30° |
|
|
Maximum dump height |
3300mm |
|
|
Optional Maximum dump height |
3500mm |
|
|
Overall dimension (L×W×H) |
5890×2170×2850mm |
|
|
Minimum turning radius |
5330mm |
|
|
Engine |
Model |
YUNNEI turbocharged engine |
|
Optional model |
YUCHAI/CUMMINS engine |
|
|
Type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
|
Rated power |
76KW(YUCHAI 78KW or CUMMINS 75KW) |
|
|
Engine starting mode |
Electric |
|
|
Transmission system |
Torque converter |
YJ280 |
|
Gearbox mode |
Counter shaft power-shift |
|
|
Gear shift |
2 forward shift 2 reverse shift |
|
|
Maximum speed |
28km/h |
|
|
Drive axles |
Main reducing spiral |
Circular Arc Bevel gear, single stage |
|
Decelerating mode |
Single stage planetary type |
|
|
Wheel base (mm) |
2400mm |
|
|
Wheel tread |
1640mm |
|
|
Ground clearance |
310mm |
|
|
Driving mode |
Four-wheel full hydraulic drive |
|
|
Tire |
Tire type |
16/70-24 tire |
|
Brake |
Brake mode |
Air assist disc brake on 4 wheels |
|
Packaging |
Packaging details |
1 unit packed into 20GP,2 units packed into 40HQ. |
|
Port |
Qingdao |
|
|
Delivery time |
15-25 days after 30% down payment |
|
|
Warranty |
12 months after delivery or 1500 work hours(whichever comes first) |
|
