Wheel loader for loading and unloading loose materials, move large goods.with high reliability and multiple purposes. It can be widely used in farms, towns construction, engineering construction, hydropower engineering, seaport and other engineering construction and etc.
1. It is equipped with the turbocharged engine, with strong power and high reliability.
2. New steel structure cab, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment.
3. Adopt Increased heavy bucket, faster digging, higher strength, more wear-resistant.

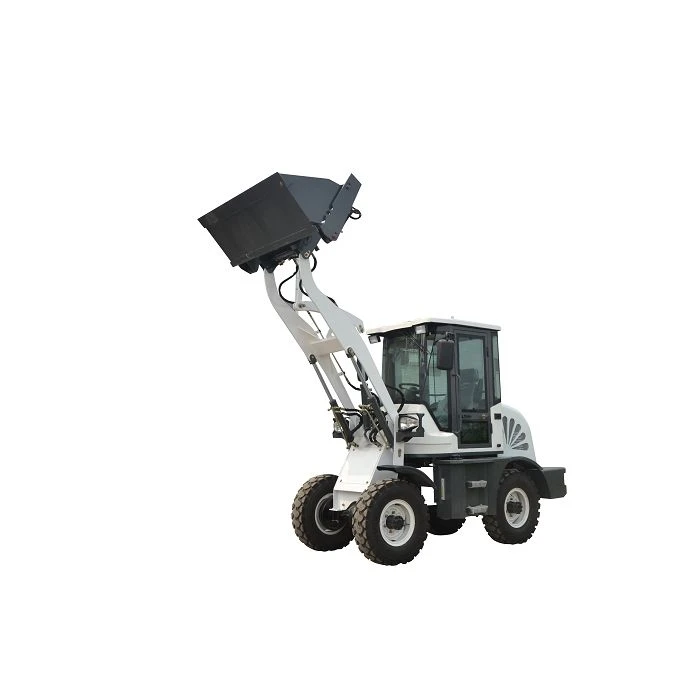

YFL08 compact wheel loader
|
Specification |
Operate weight(kg) |
2300-2500 |
|
Overall dimensions(L×W×H)mm |
4700×1400×2500mm(2280mm) |
|
|
Rated bucket capacity(m³) |
0.4 |
|
|
Rated load(kg) |
800 |
|
|
Dump height (mm) |
2150 |
|
|
Dump distance |
700mm |
|
|
Wheelbase |
2100mm |
|
|
Thread |
1405mm |
|
|
Total time |
11s |
|
|
Engine |
Model |
CHANGCHAI 390(3 cylinder,25KW) |
|
Optional model |
KOHLER/YANMAR CE or EPA Tier 3/Tier 4 engine |
|
|
Type |
Direct injection, horizontal, water-cooled, four stroke, three cylinder |
|
|
Rated power(KW) |
25 |
|
|
Steering system |
Type |
Articulated hydraulic steering |
|
Max. turning angle |
30°±1 |
|
|
Min turning radius(mm) |
3400 |
|
|
Tire |
Standard tire |
750-16 |
|
Optional tire |
1000-16 or 10-16.5 or 31*15.5-15 tubeless tire |
|
|
Transmission |
Standard type |
Mechanical transmission(gearbox) |
|
Optional type |
Hydraulic transmission(torque converter+gearbox) |
|
|
Package |
1 unit with cab packed into 20GP 2 units without cab packed into 20GP 4 units with cab packed into 40HQ |
|
|
Warranty |
12 months after delivery or 1500 work hours(whichever comes first) |
|
|
Delivery time |
15-25 days after 30% down payment. |
|
Why choose us?
- Our products are highly customizable, allowing our customers to choose the features and specifications that best suit their needs.
- The development of our Mini Loader has always been guided by the core interest of our customers.
- Our dedication to quality has earned us a reputation as a reliable supplier of Wheel Loaders.
- In the spirit of being responsible to users, we pay special attention to good pre-sales and after-sales services.
- Our Wheel Loaders are built to withstand the toughest conditions in any industry.
- In order to meet the increasing service requirements of foreign orders, we have opened a foreign trade department equipped with foreign trade personnel who have relatively rich professional knowledge and skills.
- We stand behind our products and offer a comprehensive warranty to ensure our customers' peace of mind.
- Relying on the new growth pole of the industry, we actively promote the structural adjustment of enterprises and the transformation and upgrading of industries.
- Our Wheel Loaders are built to meet global safety and quality standards, ensuring that they can be used anywhere in the world.
- We have advanced production equipment, strong technical force, stable management team and perfect service system to provide customers with all-round services.
