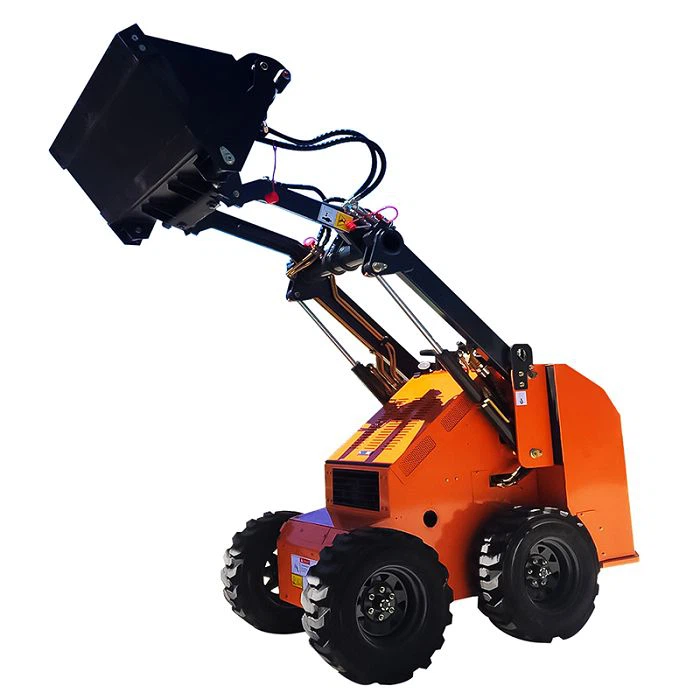

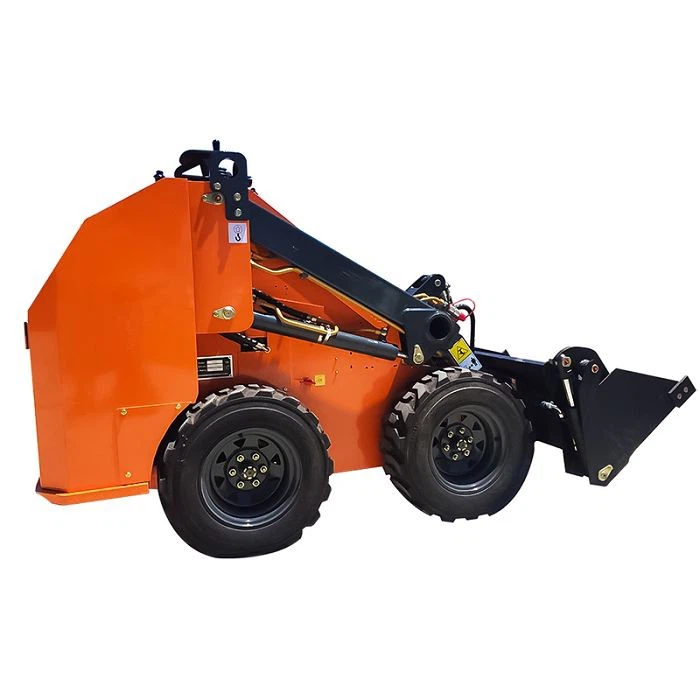

Track or wheel type
* 980mm width that can go through gate, doorway and many other narrow jobsites easily.
* Joystick handle, operating smoothly and comfortably, joystick pump is big working flow.
* Easily maintenance. Upper cover and back guard plate can be opened and dismounted easily.
* Easy controlled attachment joint and quick hitch plate. change different attachments quickly.

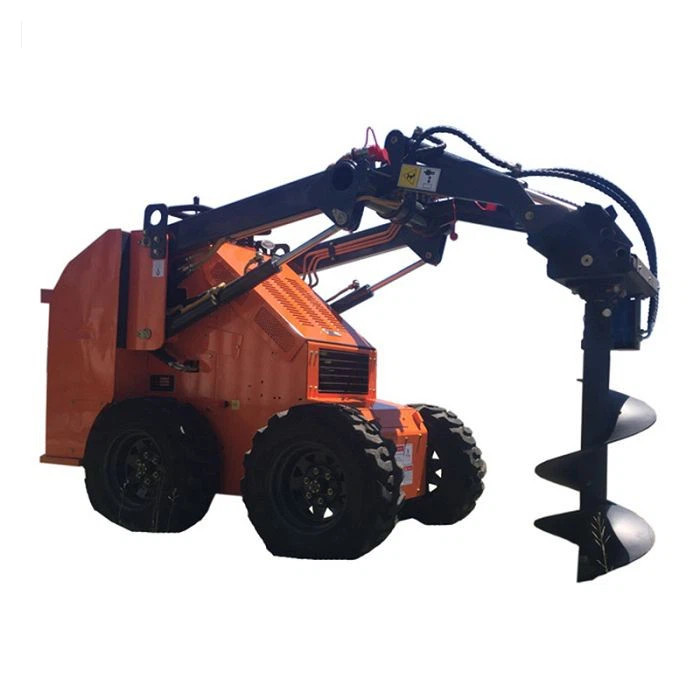

* One loader can for various function. A1,A2 mini skid steer loader can with different attachments, such as bucket, digger, auger, backhoe, hydraulic breaker, pallet forks, angle broom, mixer, trailer, sweeper, lawn mower, snow blower, stump grinder, tree spade, 4 in 1 bucket, leveler, dumping hopper, ripper, grapple, tiller, stone bucket, now blade and so on, thus ensuring there is a tool for every job you can do possibly.
|
Item |
MAIN SIZE PARAMETER |
|
|
A1 |
A2 |
|
|
Max working height（A） |
2355mm |
2355mm |
|
Max pin height（B） |
2088mm |
2122mm |
|
Max flat bucket height(C) |
1942mm |
1976mm |
|
Max dumping height（D） |
1588mm |
1622mm |
|
Max dumping distance（F) |
464mm |
528mm |
|
Wheel base（G） |
817mm |
1000mm |
|
Wheel distance(P) |
819mm |
800mm |
|
Bucket discharging angle(β) |
43° |
43° |
|
Departure angle(α) |
24° |
30° |
|
Total height（H） |
1479mm |
1514mm |
|
Ground clearance（J） |
195mm |
230mm |
|
Minimum turning radius(R) |
1492mm |
1507mm |
|
Total length without bucket（K） |
1961mm |
1961mm |
|
Total width（W） |
1029mm |
980mm |
|
Bucket width（K） |
1150mm |
1150mm |
|
Total length（L）(with bucket） |
2438mm |
2438mm |
|
Item |
Performance parameter |
||
|
A1 (Wheel type) |
A2 (Track type) |
||
|
Engine |
rated power（KW） |
24.4kW 21.4 hp |
|
|
rated rotating speed/ torque |
2800 rpm/96Nm |
||
|
Attachment System pressure(Mpa) |
20Mpa |
||
|
Tipping load |
730kg |
900kg |
|
|
Rated operating load |
365kg |
320kg |
|
|
Bucket capacity |
0.15 m3 |
0.15 m3 |
|
|
Speed |
6km/h |
6km/h |
|
|
Fuel oil tank capacity |
53 L |
53L |
|
|
Hydraulic oil capacity |
52 L
|
52L |
|
|
Tires/rubber track |
23*8.5-12 |
180*72*40 |
|
Why choose us?
- We only use quality materials and components in the production of our Skid Steer Loaders.
- Our company is a professional manufacturer of Mini Skidsteer, our company produces a wide variety of these.
- We constantly invest in research and development to improve the functionality and efficiency of our Skid Steer Loaders.
- We accelerate industrial technology upgrading and industrial structure optimization, and vigorously develop green enterprises.
- We take pride in offering flexible options for our customers to customize their Skid Steer Loaders to their unique preferences.
- We always adhere to the principle of 'equality and mutual benefit, fair trade, and abide by the contract', and look forward to working with you to create a brilliant future!
- Our Skid Steer Loaders are designed to be easy to maintain, saving you time and money in the long run.
- Our company seeks development with science and technology, constantly updates and replaces products, standardizes and optimizes the quality control, ensuring the product quality, and laying the foundation for our development.
- We provide excellent technical support for our Skid Steer Loaders, ensuring that our customers can maintain and repair them effectively.
- The company is a high-tech sole proprietorship private enterprise specializing in Mini Skidsteer. In recent years, the company's scale has expanded at a high speed. It has quickly moved towards the direction of grouping.
