In 360 degrees of sliding steering, small turning radius, the running is stable, small and quick quick changing device, can quickly through the rapid change take joint, and to realize the 4-in-one bucket, Digger, Hydraulic grapple, Auger, Fork, Hydraulic breaker, Snow blower, Angle blade, Trencher and other attachments fast switching, realize one machine with multiple functions, to meet the different needs of customers.

The original imported American Briggs&Stratton or Japan Honda engine, 23HP; HC Italian operating valve, the high quality of excellence, will bring you high efficiency and comfortable use experience.

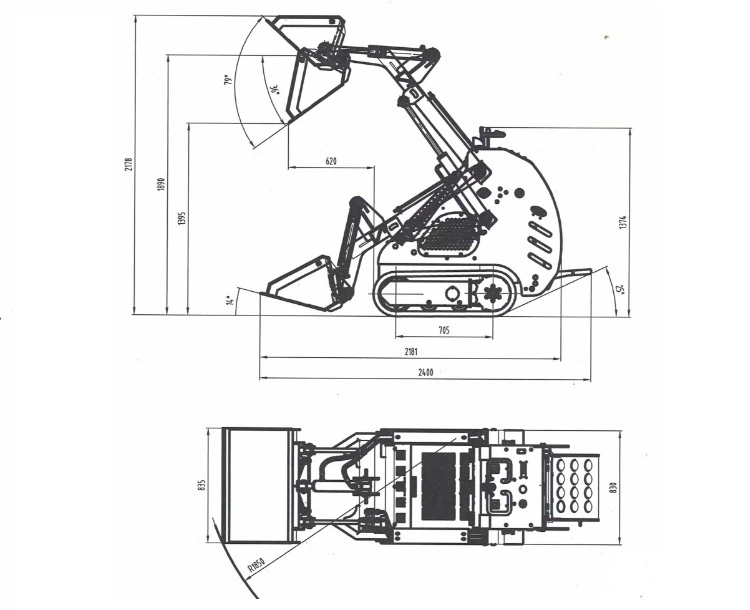

Main specification

Item	Metric	Inch
Max working height	2178 mm	85.7 inch
Max pin height	1890 mm	74.4 inch
Max dump height	1395 mm	54.9inch
The highest point discharge distance	620 mm	24.4 inch
Bucket swing angle	79°	79°
Bucket unloading angle	36°	36°
Opening-closing angle	14°	14°
Angle of departure	25°	25°
Total height	1374mm	54.1 inch
The height from the ground	90 mm	3.54 inch
Wheelbase	705 mm	27.8 inch
No bucket length	1900 mm	74.8 inch
Total width	830mm	32.7inch
Bucket width	835 mm	32.9inch
Total length（L）（with bucket）	2400 mm	94.5 inch
Turning radius (R)	1850 mm	72.8 inch

Main performance parameters

Engine		Model		HONDA /GX690
		Rated power		18.2KW/25HP
		Rotating speed（rpm）		3000
Noise（Db）				≤90
Hydraulic System		Hydraulic pressure（Mpa）		20
		Cycle time（s）		Raise		Dump	Lower
				4.10		1.9	3.65
Performance parameters			Metric		inch
	Load weight (kg)		240 Kg		533 Lb
	Bucket capacity		0.12m³		4.26 ft³
	Max lifting power		850Kg		1888Lb
	speed		6Km/h		3.71mlie/h
	Operating weight		1185kg		2633Lb
Main pump		Qty: 2
Flow of main pump		36L/min
Valve		Qty :2

360 (1)

360 (2)

360 (4)

_06

_07

_08

_09
