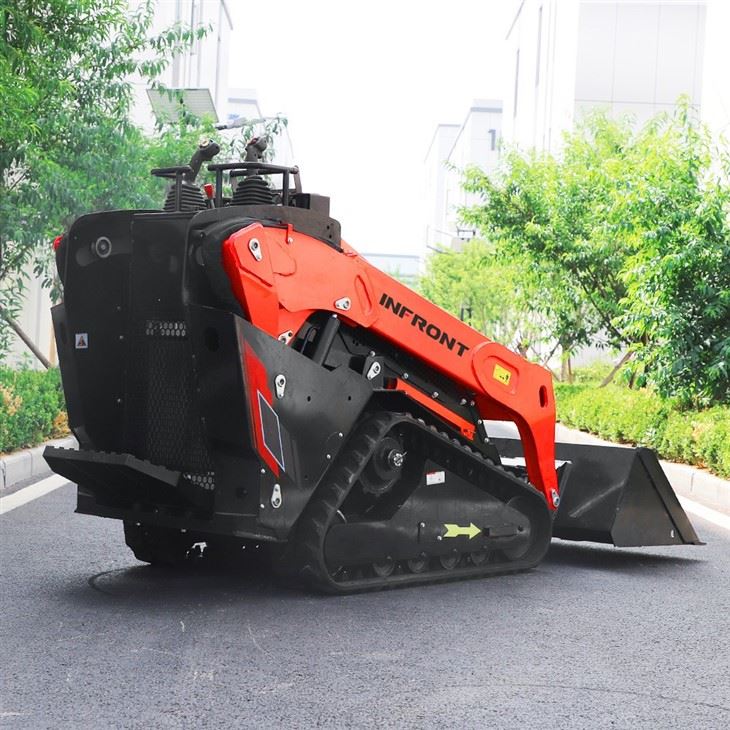

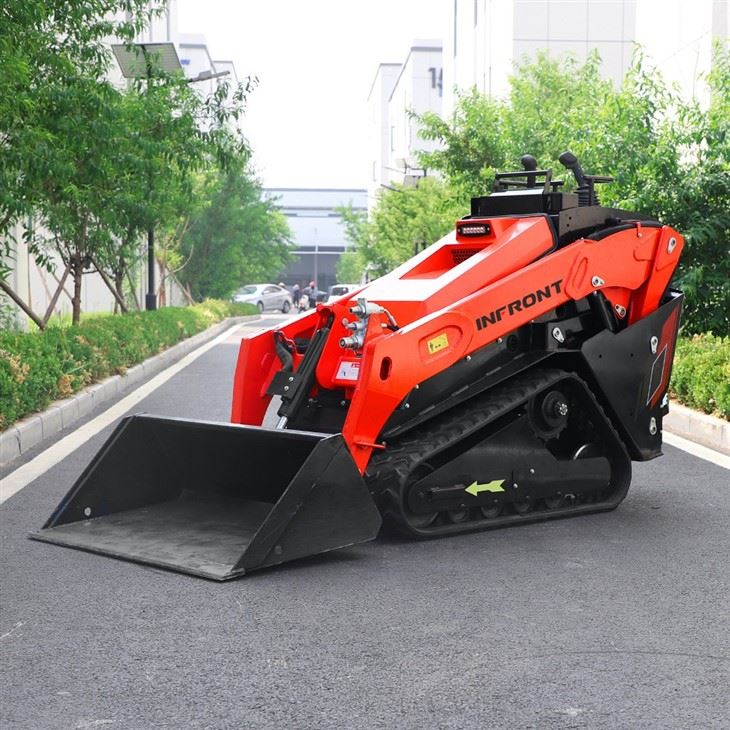

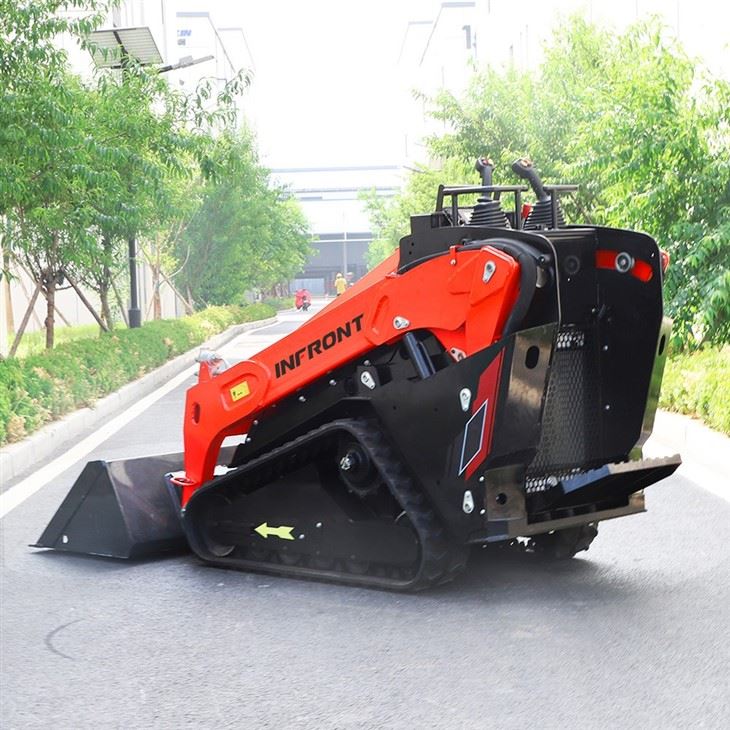

skid loader YF1000

Product Introduction

The YF1000 skid loader is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential areas, barns, livestock sheds, airport runways, and other applications. It can also serve as an auxiliary device for large-scale construction machinery.

Skid steer loaders come in two types of travel: wheeled and tracked.

The most significant feature of a skid steer loader is its compact overall dimensions and ability to turn on the spot, allowing for quick and easy replacement or attachment of various work attachments on the jobsite.

The skid steer loader's short wheelbase makes it particularly agile in confined spaces. Within these confined spaces, the skid steer can not only perform its original loading functions but also utilize attachments to perform a variety of other construction operations, maximizing construction speed. Furthermore, thanks to its comprehensive design, its own lighting system provides comprehensive illumination of the entire project area.

Product Parameters

performance	Vehicle equipment weight		kg	1317
	Vehicle dimensions		mm	26919601548
	Maximum load		kg	650
	Safe load		kg	500
	Bucket capacity		m³	0.19
	Operating speed		km/h	0~4.5
	Rated pressure		mpa	19.5
	Wheelbase	A	mm	1026
	Minimum vehicle length (pedals retracted, bucket removed)	B	mm	1981
	Maximum vehicle length	C	mm	2691
	Ground clearance	D	mm	200
	Departure angle	E	°	29
	Vehicle height	F	mm	1548
	Height from bucket pin to ground	G	mm	169
	Bucket lift angle	H	mm	27
	Dumping height	L	mm	1522
	Maximum height from bucket pin to ground	M	mm	2140
	Maximum height from bucket to ground	N	mm	2794
	Bucket tilt angle	Q	°	86
	Dumping distance	O	mm	498
	Bucket dumping angle	P	°	52
	Track width	R	mm	230
	Bucket width	S	mm	1235
	Frame width	T	mm	900
	Vehicle width	W	mm	960
	Turning radius	X	mm	1556

capacity	Brand			Yanma	Kubota engine
	Model			3TNV80F-SDWB	D1105-E4B-CSL-1
	Type			Diesel, three-cylinder, water-cooled	Diesel, three-cylinder, water-cooled
	Output			17.8kw/3000rpm	18.5kw/3000rpm
	Maximum Torque	N•M		60～64	71.5
	Displacement	CC		1267	1226
	Fuel Consumption	g/kw·h		282	257

容量	Fuel tank	L		40	40
	Oil tank	L		3.4	5.1
	Hydraulic tank	L		30	30

hydraulic system	Travel pump pressure	mpa		20	20
	Working pump pressure	mpa		19.5	19.5
	Working pump flow	L/min		48	48
