F: Product Features

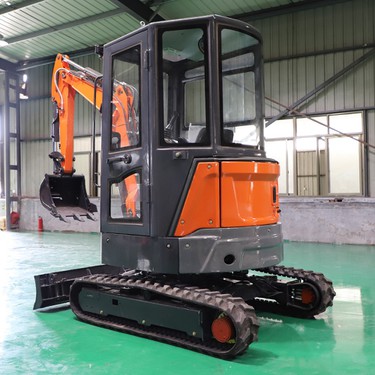

YFE28 Mini Excavator has a professional home-based industrial design, with a fresh and innovative appearance, a more reasonable structure and more powerful functions.

1. Engine: Yanmar 3TNV80F, 14.6KW, Euro 5, EPA-T4F emissions

2. Hydraulic system: load-sensitive system (LUDV).

A. Hydraulic pump type: 28-displacement variable axial piston pump

B. Load-sensitive main valve: YFE28 Mini Excavator is equipped with 10 pairs of valves, with functions such as boom swing, chassis telescopic, and hydraulic assisted crushing, which are very useful in the field of engineering machinery and improve work efficiency and flexibility.

C. Rotary motor: high-torque plunger rotary motor.
D. 2-speed high-torque plunger travel motor
3. YFE28 Mini Excavator uses the core electronic control system---BHARAL (intelligent dual-screen intelligent cockpit system)
A. 4.3-inch touch-screen LCD central control screen
B. Core controller + intelligent disaster prevention box
C. Electronic throttle, which can realize automatic idling function
D. 8-inch video monitoring (1-2 cameras) + video entertainment system (optional component)
E. CAN protocol communication panel (optional component)

parameter

Bucket capacity (m³)	0.1
Rotation speed (rmp)	1-10
Maximum climbing angle (°)	30
Maximum digging force of bucket (KN)	23.5
Maximum digging force of bucket arm (KN)	14
