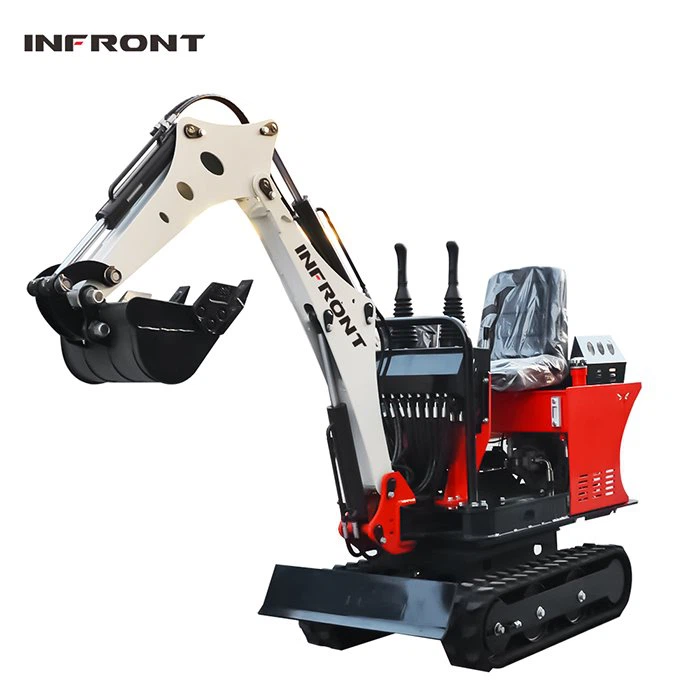

Product Features
1. Small, flexible, multifunctional, and efficient.
2. YFE08 is so mini! So efficient!
3. "smallest mini digger" in the excavator.
4. Products that ordinary people can afford.
5. compact, lightweight, cheap, one machine is more capable.
6. The smallest mini digger in size and is only 720 mm wide.
7. Easy transportation and simple operation and maintenance.
8. The smallest mini digger is our Patented products.
Specification
|
Model |
YFE08 |
|
Operating weight |
800kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Digging bucket width |
350mm |
|
Engine |
KOOP |
|
Rated power |
9.2kw/2200/r/min |
|
Hydraulic pump perssure |
14Mpa |
|
Hydraulic oil tank |
16.5L |
|
Diesel oil tank |
7L |
|
Arm digging force |
5.0Kn |
|
Bucket digging force |
7.5Kn |
|
Electric pressure |
12V |
|
Electrick power |
5W |
|
Walking speed |
2.2km/h |
Main Demensions
|
Overall dimension( LxWxH) |
2430x760x1390 mm |
|
Platform ground clearance |
350 mm |
|
Platform back turning radius |
660 mm |
|
Track width |
150 mm |
|
Chassis ground clearance |
80 mm |
Operating Range
|
Max. Digging depth |
1230 mm |
|
Max. Vertical digging depth |
1375 mm |
|
Max. Digging height |
2350 mm |
|
Max. Dumping height |
1600 mm |
|
Max. Digging radius on ground |
2450 mm |
|
Min. Rotation radius |
1100 mm |
|
Max. Upgrade height of bulldozer blade |
200 mm |
|
Max. Digging depth of bulldozer blade |
120 mm |
