Excavator Mini
video

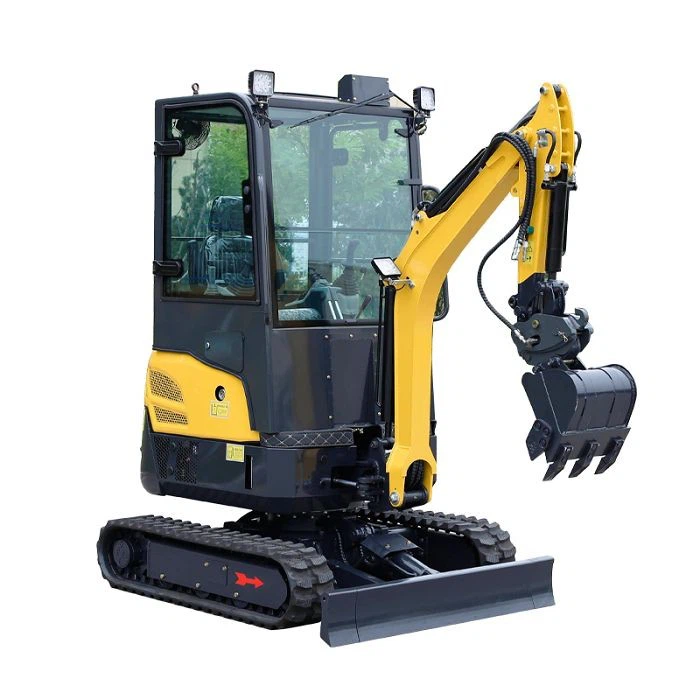

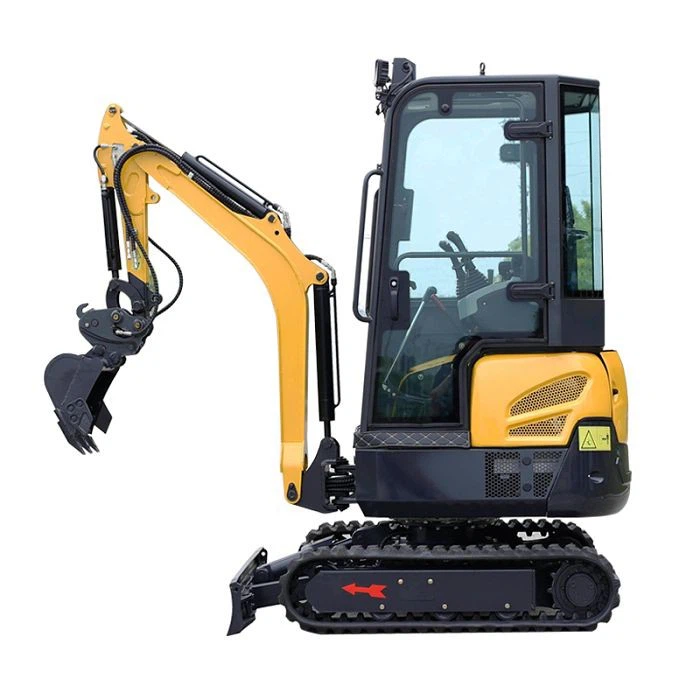

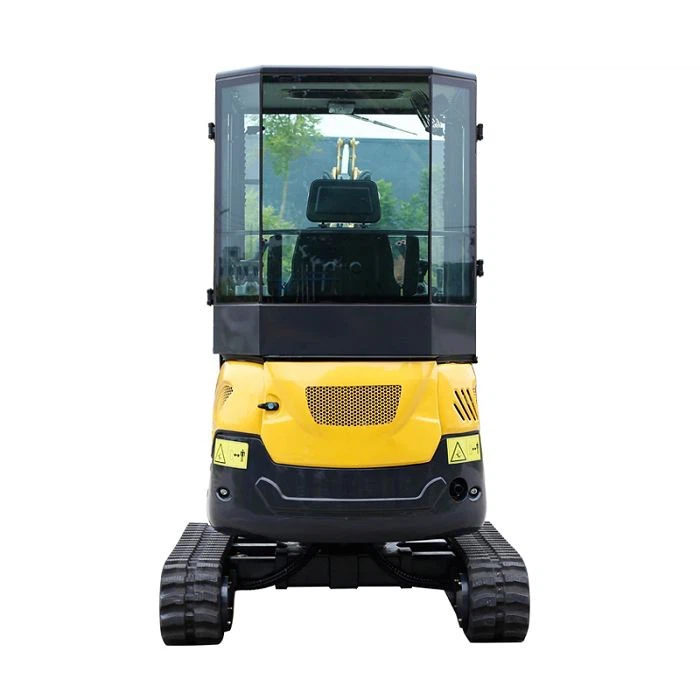

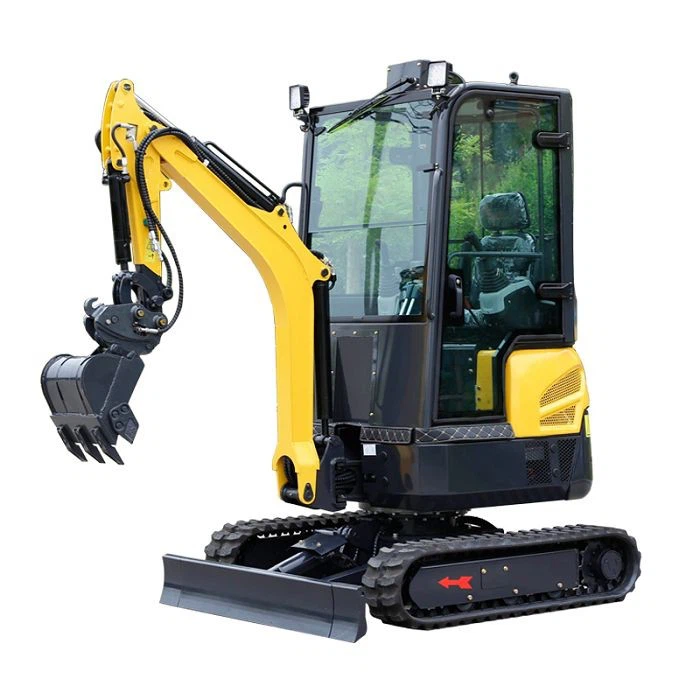

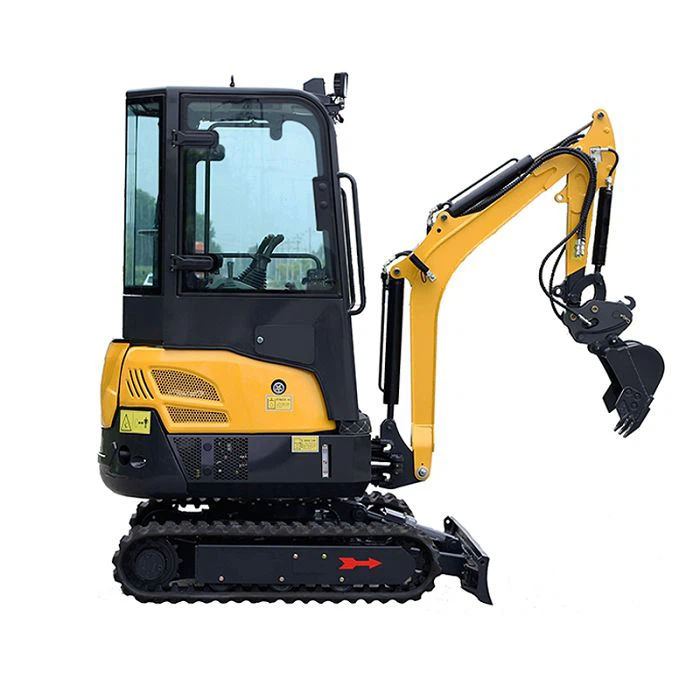

Excavator Mini

Total weight: 2050kg
Standard bucket capacity: 0.045m3
Rated power: 14Kw/Kuboat
Track gauge: 950mm
Total length: 3850mm
Platform ground clearance: 458mm

Send Inquiry
  • Description

    YFE22-3A mini crawler excavator can be equipped with a sealed large-space cab, which has no blind spots and thickened ceilings for driving work, making machines and personnel safer. It can be easily removed at any time, and it can be operated flexibly in a highly confined space. Various accessories such as breakers, earth boring machines, wood grabs, and augers can also be selected. Different devices and functions are tailored to your needs and requirements.



    Specification



    Performance

    Total weight

    2050kg

    Standard bucket capacity

    0.045m3

    Rated power

    14Kw/Kuboat

    Size

    Track gauge

    950mm

    Total length

    3850mm

    Platform ground clearance

    458mm

    Ground pressure

    38Kp

    Slewing angle

    360°

    Track width

    230mm

    Track height

    320mm

    Track length

    1900mm

    Total height

    2128mm

    The Scope of Work

    Max.ground digging radius

    4045mm

    Max.digging depth

    2150mm

    Max.digging height

    3556mm

    Max.unloading height

    2452mm

    Main pressure

    18Mpa

    Min.radius of gyration

    1190mm

    Dozer blade maximum lifting height

    325mm

    Dozer blade maximum earthmoving height

    175mm

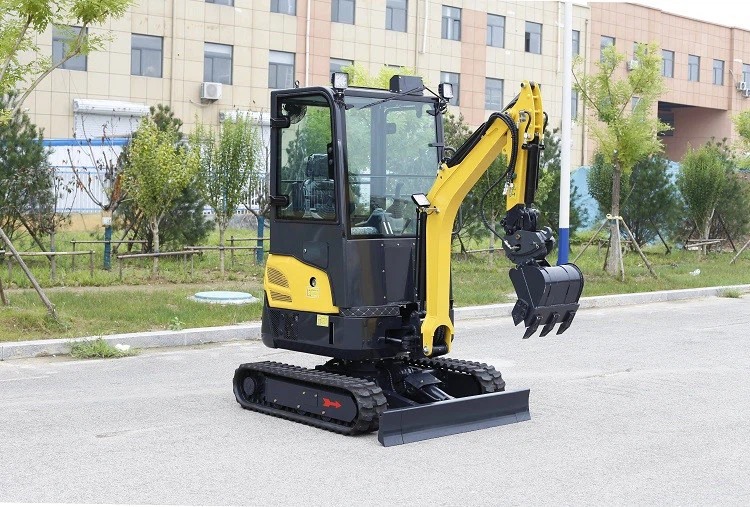

    2.0 (4)

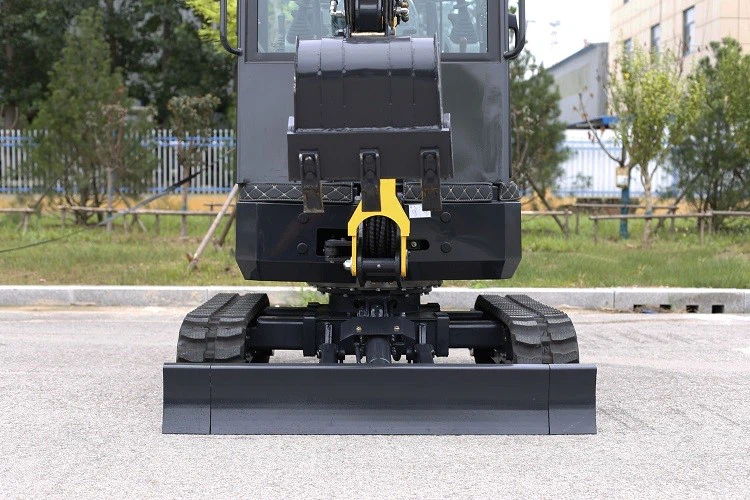

    20 (1)

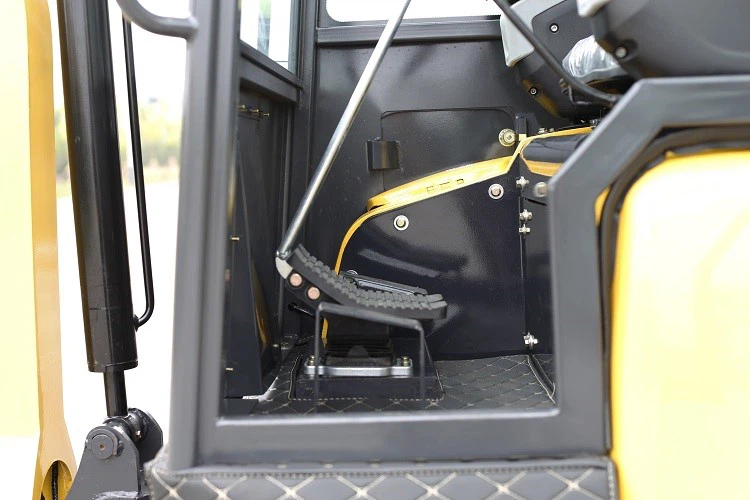

    20 (3)

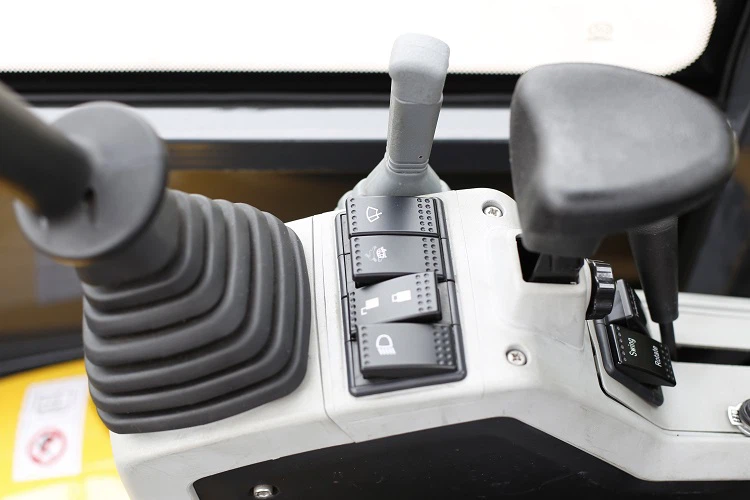

    20 (8)

    _06

    _07

    _08

    _09



    Why choose us?

    • Our excavators are made to the highest standards of quality, durability, and performance.
    • We develops, manufactures, and sells premium products for a broad range of customers around the world. Contact us today to learn more about the benefits of partnering with us and how we can work together!
    • Our mission is to provide our customers with the best value for their investment.
    • Under the guidance of strategy, based on the rapid and healthy development of enterprises, we strive to adapt to the new normal of economic development.
    • We manufacture excavators using only the highest quality materials and components.
    • Our company produces and sells each Excavator Mini through the professional instrument's precision inspection, the product has the reliable quality assurance.
    • We have a wide selection of excavators to fit all your excavation needs.
    • We strive to improve the sustainable development capability of the enterprise and make the company bigger, more refined and stronger.
    • Our experienced engineers and technicians are constantly innovating and improving our products and processes.
    • We respect and care for each and every employee, and value the growth and development of our employees.
