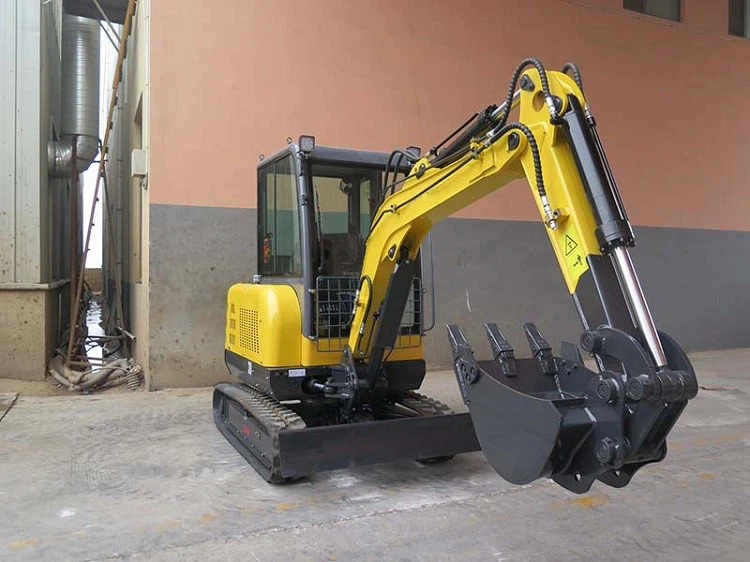

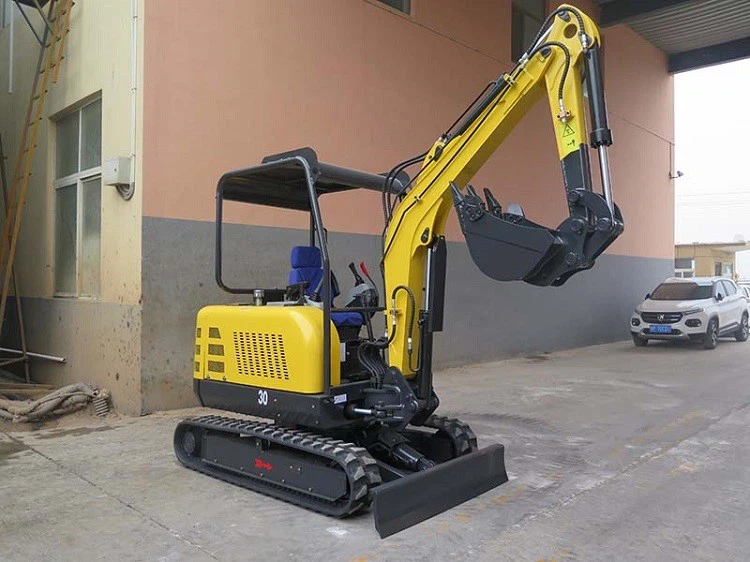

Mini excavator using three-cylinder water-cooled engine and fully upgraded hydraulic system, lower fuel consumption, higher productivity; Hydraulic pilot, bringing more comfortable and smoother operating experience; Tail-shaped design, adapt to a harsh working environment, has a more stable body, ensuring construction Safety; More stringent material selection, using better three filters and hydraulic pumps, which extend the service life and reduce repair and maintenance costs. This excavator can split the mountain, it also can digging the canal, real realize versatility for amphibious use. One set machine can be customized, regardless of configuration, auxiliary equipment, or color, we will 100% meet your needs.
Specification
|
Overall Dimensions |
|
|
Total Length (mm) |
4180 |
|
Total Width (mm) |
1500 |
|
Total Height (mm) |
2128 |
|
Ground Clearance (mm) |
458 |
|
Total Weight (kg) |
2600 |
|
Ground Pressure (kpa) |
38 |
|
Performance |
|
|
Max.Digging Height (mm) |
3900 |
|
Max.Digging Radius (mm) |
4040 |
|
Max.Digging Depth （mm) |
2500 |
|
Max.Dumping Height (mm） |
2600 |
|
Slewing Angle |
360° |
|
Grade Ability |
25° |
|
Travel Speed (km/h） |
2.6 |
|
Bucket Capacity (m³） |
0.095 |
|
Bucket Width （mm) |
500 |
|
Swing angle of boom (°）L/R |
70/50 |
|

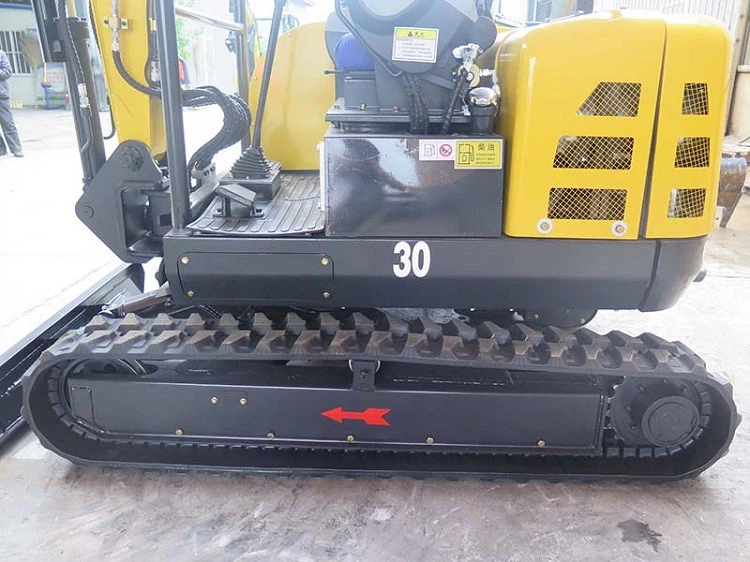

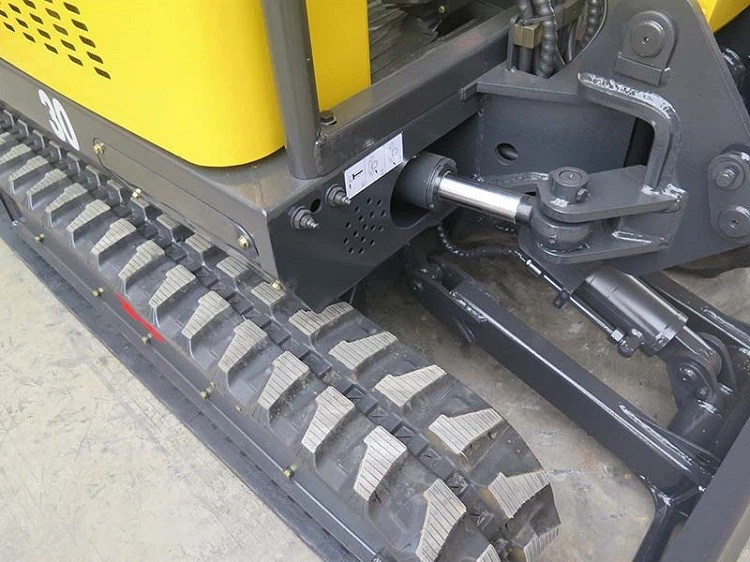

Track |
|
|
Track Gauge (mm) |
1150 |
|
Track Width (mm) |
250/260 |
|
Track Length (on ground)(mm) |
2300 |
|
Hydraulic System |
|
|
Main pump |
Triple pump |
|
Main Pressure (Mpa) |
18 |
|
Max.Rpm of the pump (r/min) |
2500 |
|
Pump Displacement (ml/r) |
28 |
|

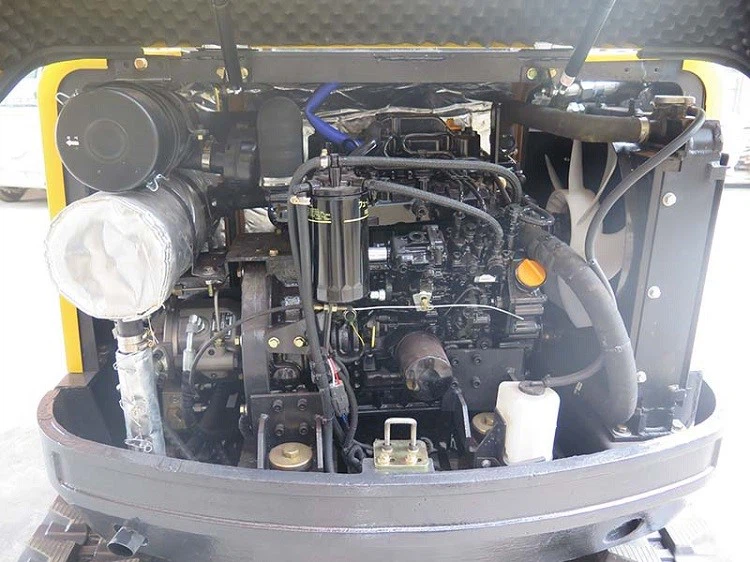

Engine |
|
|
Model |
Changchai390 /Yanmar 3TNV88 |
|
Output(KW/rpm) |
20/2200 19.6/2200 |
